Smart Bridge Structural Health Monitoring (SHM) System

Overview

The REDCOAST.LTD Smart Bridge Structural Health Monitoring (SHM) System is a turnkey grid-powered infrastructure monitoring solution that continuously tracks the structural behavior of highway bridges, viaducts, cable-stayed and suspension bridges, railway crossings and urban footbridges. It combines a distributed network of high-precision sensors, REDCOAST.LTD self-designed multi-channel signal conditioning PCBs, edge computing acquisition nodes and a centralized cloud analytics platform to deliver real-time visibility into strain, vibration, deflection, inclination, displacement, cable tension, temperature and corrosion. Aging infrastructure, rising traffic loads, climate stress and seismic events make continuous SHM no longer optional for asset owners — and REDCOAST.LTD delivers the entire stack: hardware, board-level electronics, communication gateway, web dashboard and mobile alerts under one project team.

Key Features

• Multi-sensor compatibility — supports foil and vibrating-wire strain gauges, triaxial MEMS accelerometers, biaxial tiltmeters and inclinometers, LVDT and laser displacement sensors, cable tension load cells, rebar corrosion sensors, anemometers and temperature/humidity probes.
• REDCOAST.LTD self-developed analog front-end PCBs — 24-bit ADC with programmable gain amplifiers, anti-aliasing filters, IEPE constant-current excitation and isolated bridge excitation supplies for laboratory-grade accuracy in the field.
• Synchronized sampling up to 1000 Hz per channel — high-fidelity dynamic data for modal analysis, fatigue assessment and event reconstruction.
• PTP IEEE 1588v2 + GPS time synchronization with sub-microsecond accuracy across all distributed nodes — essential for modal analysis of long spans.
• Edge analytics on board — FFT, modal frequency tracking, RMS, peak detection, configurable multi-level threshold alarms processed locally before uplink.
• Scalable channel count — from 16 channels on a small footbridge to 128+ channels distributed across a long-span cable-stayed bridge.
• 24-hour UPS backup — grid-powered with LiFePO4 UPS so monitoring continues during outages, storms and planned maintenance.
• Robust outdoor enclosure — IP66, -40 to +75 °C, salt-spray and UV-resistant powder-coated finish.
• Open data integration — MQTT, REST API, OPC UA and OGC SensorThings; BIM/IFC asset export for digital-twin and bridge management systems.
• Smart city compatible — feeds into REDCOAST.LTD multi-functional smart pole and city asset management dashboards.

Technical Architecture

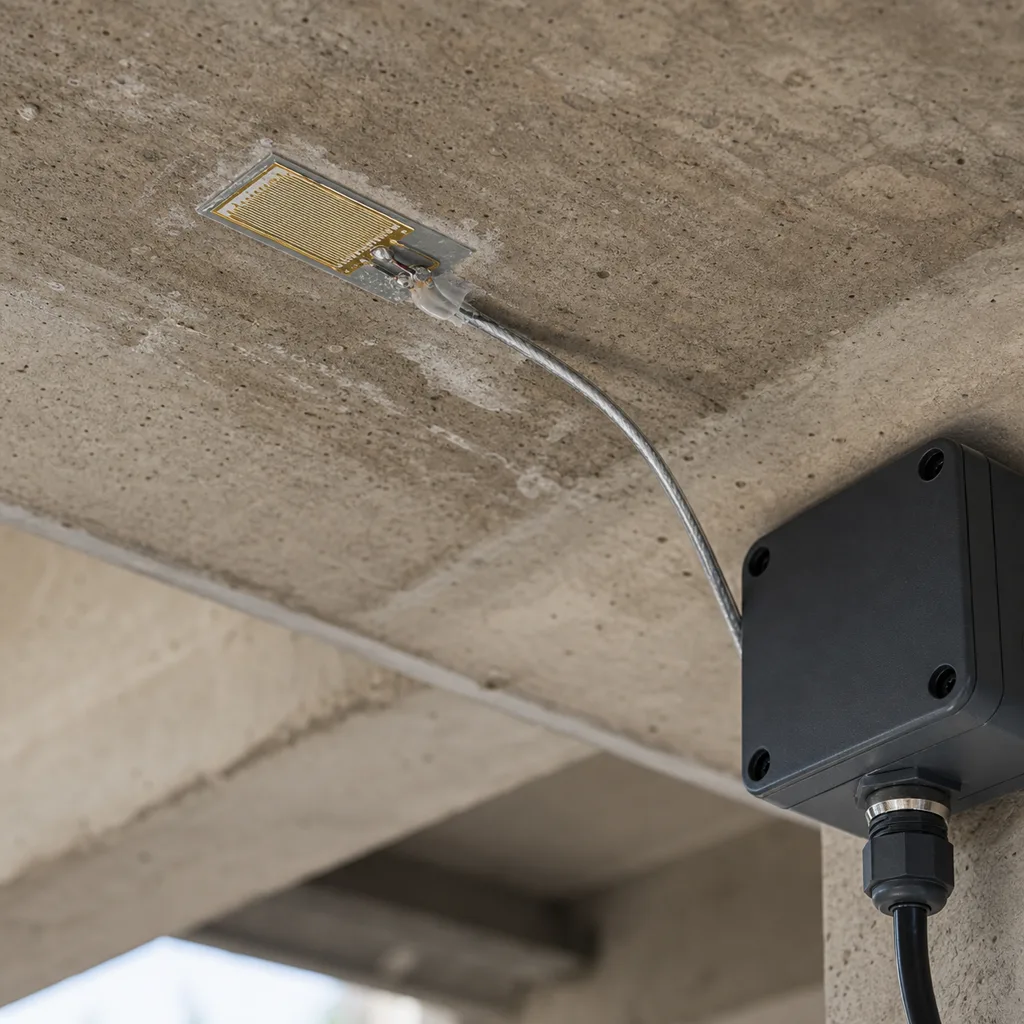

The system follows a three-tier architecture: distributed sensing → bridge-side edge aggregation → cloud analytics. At the sensing tier, point and array sensors are installed across critical structural members — main span girders, cable anchorages, expansion joints, piers, bearings and pylons. REDCOAST.LTD-designed analog front-end PCBs convert microvolt-level signals into clean 24-bit digital streams. Each acquisition node, also built around a REDCOAST.LTD-designed main PCB, hosts up to 16 input channels with programmable gain amplifiers, anti-aliasing filters, excitation supplies for strain bridges and IEPE constant-current sources for piezoelectric accelerometers. A GPS-disciplined oscillator and IEEE 1588v2 PTP slave ensure all nodes share a common time base so dynamic events can be correlated across the entire structure.

At the edge aggregation tier, an industrial-grade bridge-side gateway built on REDCOAST.LTD edge controller hardware collects data from all distributed nodes via Gigabit Ethernet, single-mode fiber optic links, or hardened LoRa for retrofits with difficult cable routing. The gateway runs real-time signal processing — FFT, modal frequency extraction, peak-hold, RMS, fatigue counting and configurable threshold alarms. Local SSD storage of 256 GB to 2 TB buffers data during connectivity loss, and a LiFePO4 UPS module sustains operation for at least 24 hours during grid outages. The gateway uplinks to the cloud via 4G/5G with wired Ethernet failover and TLS 1.3 mutual authentication.

At the cloud tier, the REDCOAST.LTD SHM platform aggregates data from one bridge or an entire portfolio into a unified web dashboard and mobile application. It provides real-time waveform visualization, FFT spectra, historical trending, modal frequency tracking, fatigue accumulation indices and configurable multi-level alerts (warning, alert, alarm). AI-assisted anomaly detection compares current behavior against learned baselines and flags deviations that traditional threshold rules miss — early indicators of stiffness loss, support settlement or cable tension change.

Connectivity & Power

Communication options include Gigabit Ethernet (recommended for high channel counts and long-term reliability), 4G/5G cellular uplink (when wired backhaul is unavailable), single-mode fiber for spans where electromagnetic isolation matters, and hardened LoRa for retrofit installations on bridges with difficult cable routing. Time synchronization uses IEEE 1588v2 Precision Time Protocol over Ethernet with GPS-disciplined holdover, keeping every node within a sub-microsecond common reference. Northbound data flows over MQTT, REST and OPC UA, allowing seamless integration with existing bridge management systems, SCADA platforms and digital-twin environments.

Power is grid-based — bridges almost always have AC power infrastructure for lighting, tolling or signaling, and the SHM system shares that supply. Each acquisition node accepts AC 100–240 V, 50/60 Hz, with surge protection and isolated power conditioning. A bridge-side LiFePO4 UPS provides 24 hours of autonomy at typical 50 W consumption, ensuring monitoring continues through outages, storms or planned maintenance. For remote pedestrian footbridges or temporary monitoring of bridges under construction, an off-grid solar/LiFePO4 variant is also available.

Protection & Reliability

All field hardware is housed in IP66-rated polyester or aluminum enclosures with smooth matte powder-coated finish (RAL 7016 anthracite, RAL 9016 traffic white or customer-specified). Sensors and connectors are rated -40 to +75 °C, supporting deployments from arctic highway viaducts to desert and coastal bridges. Salt-spray resistance per IEC 60068-2-52 supports coastal and marine bridge applications. EMC compliance to EN 61000-6-2 and EN 61000-6-4 ensures coexistence with high-voltage power lines, traction power for railway bridges and tolling RF systems. Design life of the electronics is 10+ years; sensors are field-replaceable with hot-swap M12 connectors. Mean time between failures (MTBF) of acquisition nodes exceeds 100,000 hours under typical bridge conditions.

Application Scenarios

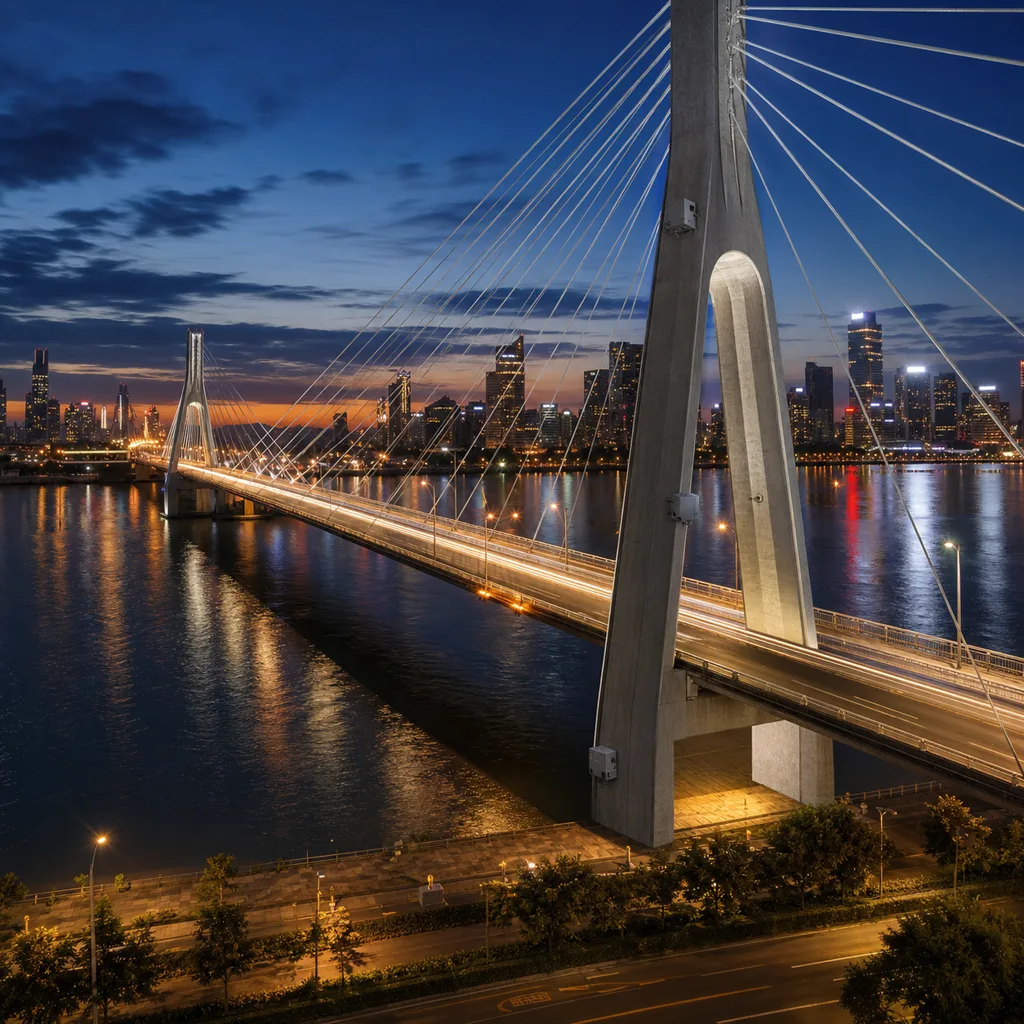

• Long-span cable-stayed and suspension bridges — continuous monitoring of cable tension, pylon inclination, deck girder vibration and bearing displacement; early detection of cable slackening, pylon settlement or wind-induced flutter on critical national infrastructure.
• Highway viaducts and concrete box-girder bridges — strain and deflection trending under heavy truck traffic; fatigue accumulation, expansion joint health and pier settlement detection to guide preventive maintenance budgets.
• Railway bridges — high-frequency dynamic response to train passages, rail-fastener integrity, abutment settlement and signal correlation with rolling stock weight for capacity studies and renewal planning.
• Urban pedestrian footbridges — crowd-induced lateral vibration (Millennium-bridge-type behavior), comfort assessment and event correlation with public gatherings so operators can manage crowd density safely.
• Aging concrete and steel bridges — rebar corrosion progression, crack-width tracking and remaining service life estimation to support infrastructure renewal prioritization and budget allocation.
• Bridges in seismic zones — earthquake response capture, immediate post-event structural integrity assessment and rapid go/no-go decisions for traffic reopening after seismic events.

Case-style Examples

Long-span cable-stayed bridge SHM retrofit. A 600-meter cable-stayed crossing required continuous monitoring of cable tension, pylon inclination and deck vibration to extend its design life and meet new asset management compliance requirements. REDCOAST.LTD deployed 96 channels distributed across the span: 36 strain gauges on critical girder sections, 18 triaxial accelerometers for modal tracking, 12 vibrating-wire cable tension transducers, 8 biaxial inclinometers on the pylons and 22 environmental and displacement sensors at expansion joints and bearings. All channels feed a redundant bridge-side gateway with PTP time-sync across the full span and fiber optic backhaul to operations. The system delivered a baseline modal model within four weeks and now feeds the operator's bridge management system via OPC UA, with mobile push alerts for any threshold breach.

Urban concrete viaduct cluster monitoring. A municipal transport authority needed to monitor a cluster of 14 concrete box-girder viaducts along a heavy-truck arterial. REDCOAST.LTD provided a standardized 32-channel SHM package per viaduct sharing a city-wide SHM cloud dashboard with cross-asset comparison, fatigue indexing and AI anomaly detection. Overload-correlated stress events trigger automated alerts and are cross-referenced with ANPR cameras already mounted on REDCOAST.LTD safe-city smart poles, allowing the operator to link specific overloaded trucks to measurable structural impact.

Pedestrian footbridge crowd vibration monitoring. A waterfront urban park footbridge experienced complaints of swaying during weekend events. A compact 16-channel REDCOAST.LTD SHM kit with eight accelerometers and four strain gauges identified a lateral mode at 1.2 Hz coupled with crowd lockstep. Continuous monitoring now informs the parks department on safe crowd density thresholds during festivals, with real-time mobile alerts to event staff.

Customization & Selection Guide

Selecting the right SHM configuration starts with bridge type, span length, traffic loading, environmental severity and the asset owner's monitoring objectives — fatigue tracking, post-event assessment, periodic compliance reporting or full predictive maintenance. For short urban bridges, a 16- to 32-channel package with strain, acceleration, tilt and temperature is usually sufficient. Medium-span highway viaducts typically require 32–64 channels with added displacement and corrosion monitoring. Long-span cable-stayed or suspension bridges call for 64–128+ channels, multi-pylon distributed nodes and high sampling rates for modal analysis. Coastal or saline environments add corrosion sensors and stainless-steel enclosures; high-altitude or arctic deployments add extended-temperature electronics and heated enclosures. REDCOAST.LTD engineers work hand-in-hand with the structural designer or asset manager to specify sensor placement based on finite-element analysis, historical inspection reports or fresh field assessment, and adjust PCB channel mix, gain ranges and excitation supplies accordingly.

Deployment & After-sales

Each project begins with a site survey, structural review and sensor layout design — supported by FEM models when available. REDCOAST.LTD ships fully tested and pre-configured cabinets to site; on-site installation by REDCOAST.LTD-supervised partners typically completes within 2–4 weeks for medium-span bridges and 6–10 weeks for long-span structures. A baseline data collection phase of about four weeks establishes modal and threshold references. Remote system commissioning, operator training and dashboard customization are included. Standard hardware warranty is 24 months, extendable to 60 months; software updates and cloud platform support are continuously available. Remote diagnostics, on-call structural engineering review and annual on-site inspection are offered under service agreements.

Standards & Compliance

The system aligns with widely referenced engineering and integration standards including ISO 18649 (mechanical vibration evaluation), ISO 16587 (performance parameters for vibration measurement of bridges and buildings), ASTM strain gauge practices, IEEE 1588v2 (PTP), MQTT 3.1.1/5.0, OPC UA and OGC SensorThings. Electrical compliance covers CE, FCC Class A, IEC 61010-1, IEC 60068, IEC 60529 (IP66), EN 61000 EMC and RoHS. The platform supports data export aligned with national bridge management systems and integrates with BIM/IFC asset databases for digital-twin workflows.

Why REDCOAST.LTD

REDCOAST.LTD delivers an end-to-end smart infrastructure solution — not assembled components. The 24-bit analog front-end PCB, edge controller PCB, UPS power management PCB and IoT gateway PCB are all designed in-house, which means we can tune sensitivity, channel count, sample rate, excitation supplies and protection circuits to the structural engineer's exact requirements rather than forcing the project into a fixed off-the-shelf product. The SHM web management platform and the field engineer mobile app are also built by REDCOAST.LTD, so dashboards, alarm logic and integration APIs adapt to each customer's bridge management workflow. Combined with global shipping, adaptability to varying climate, grid and compliance environments worldwide, and a single project team handling hardware-software-cloud-app integration, REDCOAST.LTD is the partner of choice for highway authorities, municipal transport agencies, railway operators and infrastructure consultants.

Contact REDCOAST.LTD today to discuss your bridge SHM project — share your structural drawings, monitoring objectives and operating environment, and our engineering team will respond within two business days with a tailored proposal, sensor layout recommendation and bill of materials.
