Smart Grid-Powered Sports Field LED Floodlighting System

Overview

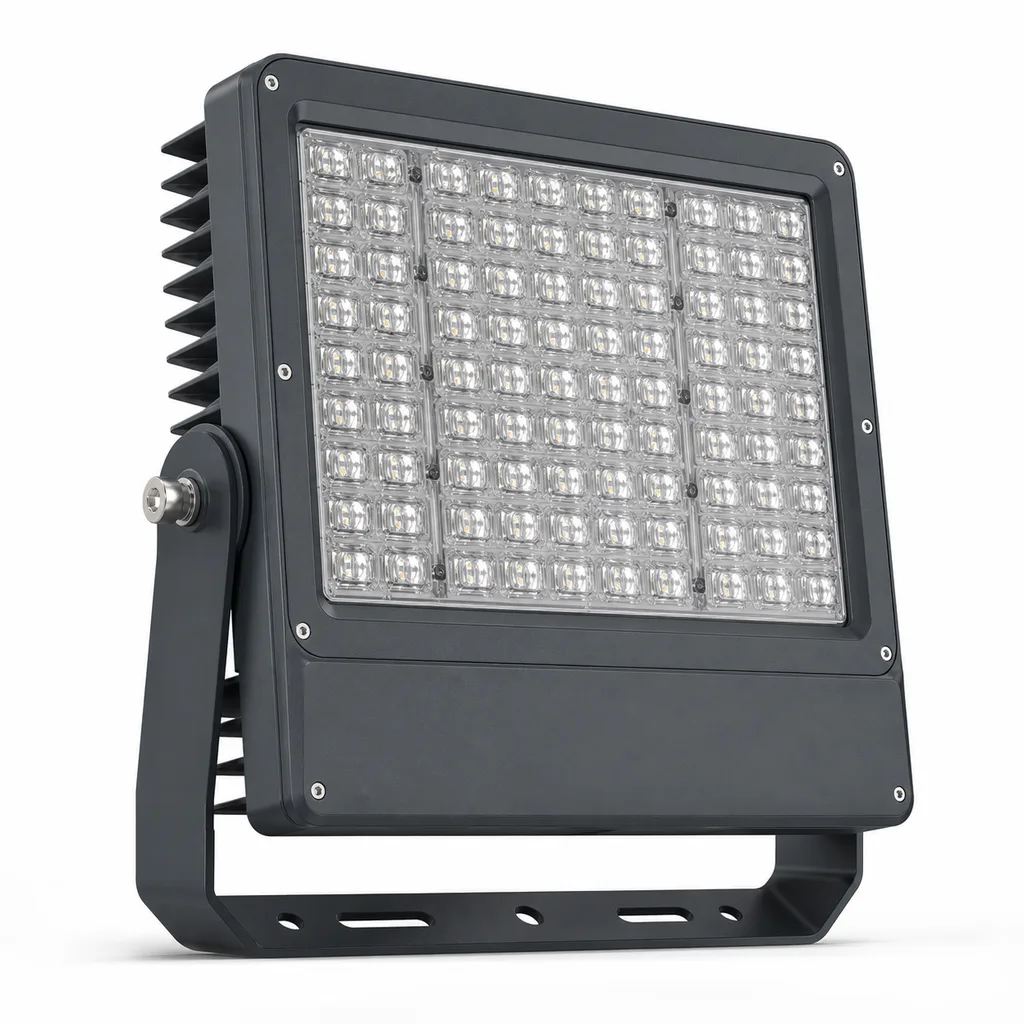

The REDCOAST.LTD RC-SFL Series Smart Sports Field LED Floodlighting System is a grid-powered, professional-grade lighting solution engineered for outdoor sports facilities ranging from school playgrounds and community courts to broadcast-grade stadiums and elite training complexes. Each fixture combines a high-efficacy LED engine, REDCOAST's in-house constant-current driver PCB, precision optics, and an integrated central management system (CMS) controller, delivering uniform illuminance, low glare, instant remote control and verifiable energy metering. Powered by mains AC (no solar dependency) for stable, year-round operation, the system replaces legacy metal-halide and high-pressure-sodium floods with 50–65% lower energy consumption, instant restrike and intelligent scheduling.

Key Features

• High-efficacy LEDs (Lumileds / Osram) delivering up to 160 lm/W with single fixtures rated 200 W to 2000 W.
• Anti-glare optics with multiple beam options (15° / 25° / 45° / 60° / 90° asymmetric) and Upward Light Ratio ≤2%.
• EN 12193 compliant for Class I / II / III play areas, supporting training, competition and broadcast tiers.
• REDCOAST-designed constant-current driver PCB with active PFC (>0.95), 10 kV / 10 kA surge protection, dimmable output (0–100%) and field-replaceable driver tray.
• Built-in CMS smart control: DALI-2, 0–10 V, Zigbee mesh, 4G / Wi-Fi uplink, optional NEMA 7-pin photocell socket.
• Instant on/off and restrike (no warm-up), enabling event-by-event scheduling and motion- or booking-triggered energy savings.
• High CRI options (Ra ≥80 standard, Ra ≥90 for broadcast) and tunable CCT (3000 K – 5700 K), flicker <1% for slow-motion cameras.
• IP66 / IK10 die-cast aluminium housing with smooth matte powder-coated finish, optional C5-M coating for coastal venues.
• Wide input voltage AC 100–305 V supporting unstable regional grids.
• 5-year standard warranty, 60,000-hour L80 LED lifetime, project-level extended warranty up to 10 years.

Technical Architecture

The system is organised in three layers: the luminaire layer, the control layer, and the management layer.

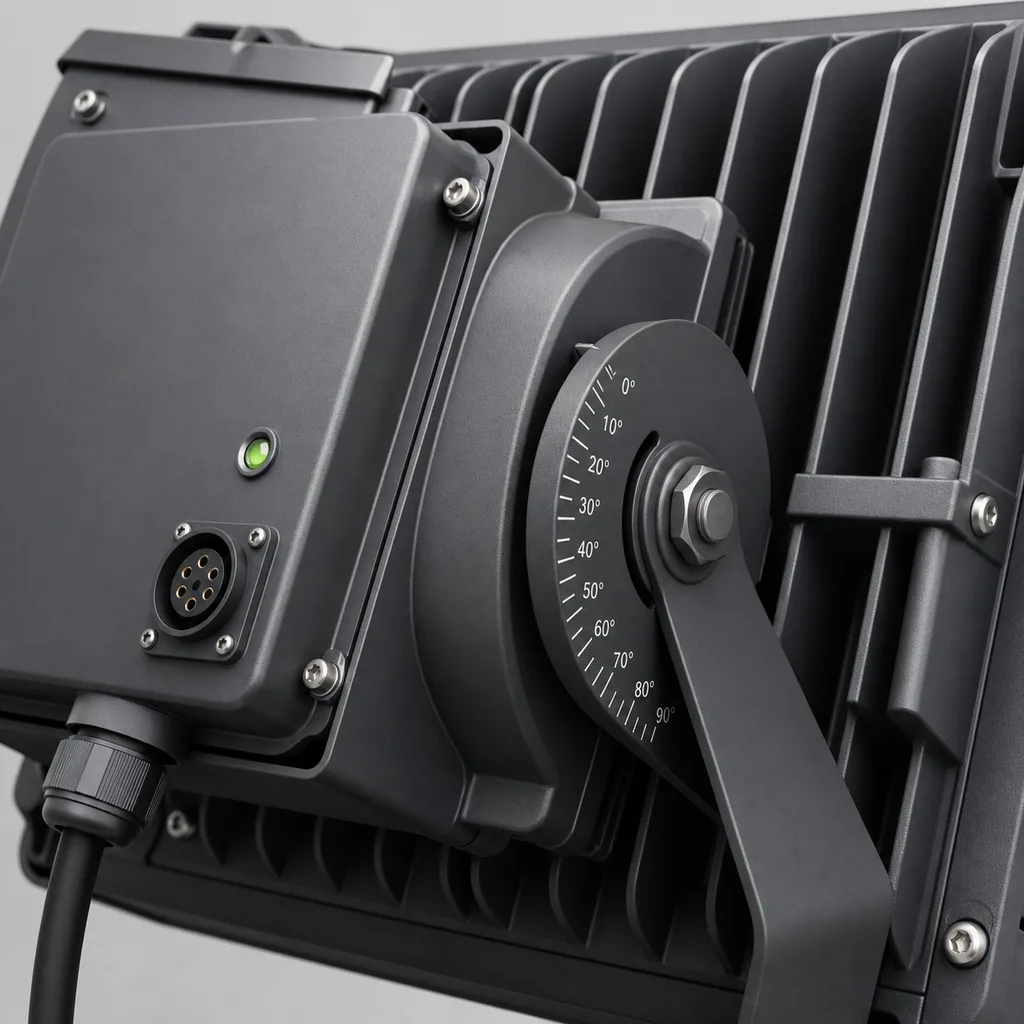

At the luminaire layer, each floodlight comprises a die-cast aluminium housing with multi-fin heat sink, modular LED light engines using high-binning packages, precision PMMA / tempered-glass optics, and a REDCOAST self-developed driver PCB. The driver integrates active power-factor correction, constant-current control, programmable dimming, fault detection (open / short / over-temperature / over-current) and differential / common-mode surge protection. The driver tray slides out from the rear of the housing, allowing maintenance teams to swap drivers on-mast without dismounting the fixture.

At the control layer, each fixture (or each pole grouping) carries a CMS controller node that holds the fixture's address, schedule, dimming profile, and reports back energy consumption, on-time hours, board temperature and fault states. Nodes connect to the platform either through wired DALI-2 / 0–10 V down a mast bus, through a Zigbee mesh for retrofit projects, or directly via a pole-mounted 4G / Wi-Fi gateway. A typical multi-court venue uses one gateway per 8–32 fixtures.

At the management layer, REDCOAST's web and mobile CMS platform lets the venue operator design lighting scenes (training, club match, broadcast, post-event cleaning, security mode), schedule sessions, group fixtures by court or pitch, and monitor real-time power use. A REST API integrates with venue booking systems, so a court booking automatically powers the corresponding fixtures up and shuts them down after play.

Connectivity & Power

The RC-SFL Series is grid-powered (AC 100–305 V, 50 / 60 Hz) to ensure stable, uninterrupted operation at sports facilities where high illuminance must be guaranteed for scheduled play and broadcasting. Power is fed from a poolside or pole-base distribution box with MCB, RCD, SPD and contactor; the system does not include or depend on solar panels.

Communication options include wired DALI-2 (preferred for stadiums and greenfield projects), 0–10 V (legacy compatibility), Zigbee mesh (retrofit, where trenching is expensive), and 4G / Wi-Fi gateway uplink. NEMA 7-pin photocell sockets are optional where the operator prefers local dusk-to-dawn control. All three layers — luminaire, controller, platform — are developed by REDCOAST.LTD, ensuring end-to-end protocol consistency.

Protection & Reliability

The luminaire enclosure is IP66-rated against dust ingress and powerful water jets, with IK10 impact resistance suitable for stray-ball strikes, hail and general harsh weather. The driver compartment is sealed separately for serviceability. The standard exterior is a smooth matte powder-coated finish over a corrosion-resistant base, with an optional C5-M coating system (ISO 12944) and stainless-steel hardware for coastal, island and chloride-rich industrial environments. Operating temperature range is -30 °C to +55 °C, extendable to -40 °C for cold-climate stadiums. Surge protection is integrated at 10 kV / 10 kA differential and common mode, protecting against lightning strikes on open sports fields. LED lifetime is rated L80 at 60,000 hours under TM-21 extrapolation, and drivers are rated >50,000 hours MTBF.

Application Scenarios

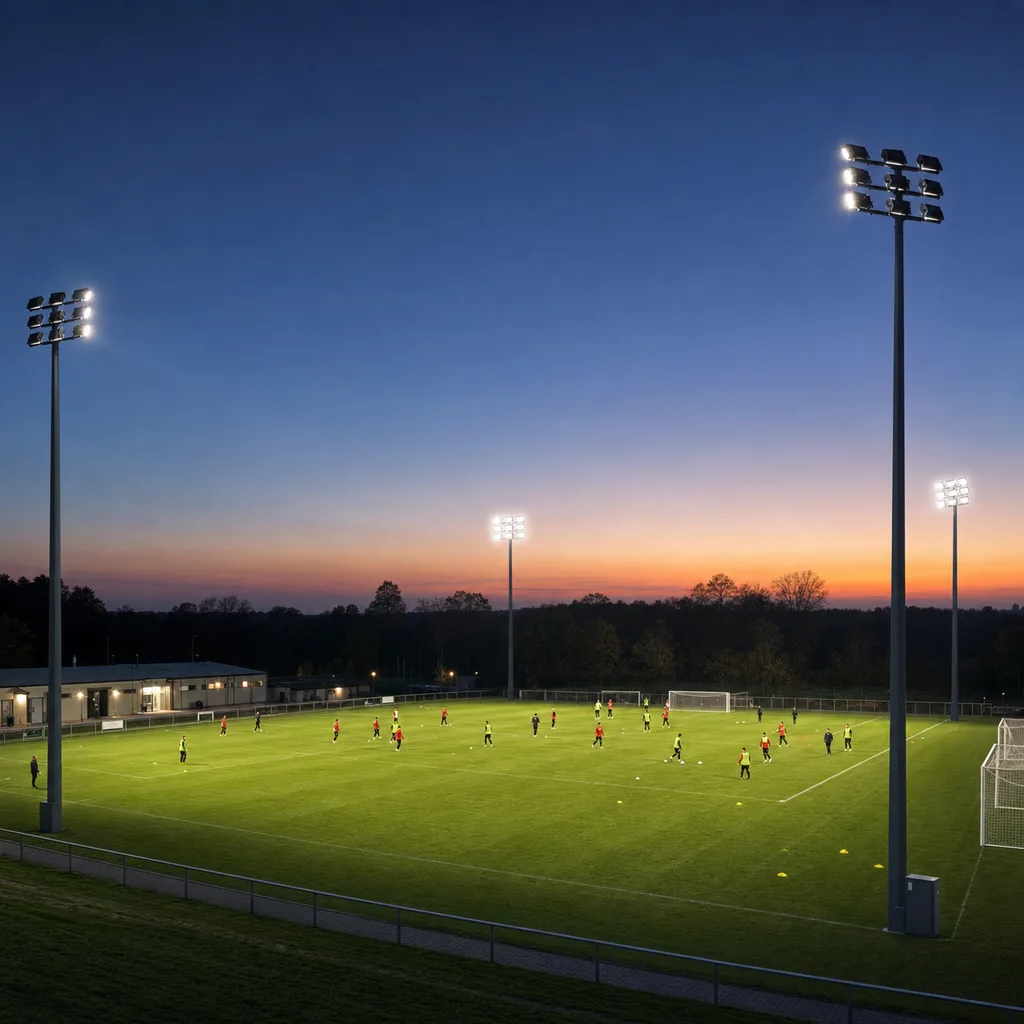

• School and university sports fields: Energy-efficient retrofit of athletics tracks, football pitches and outdoor courts with scheduled training sessions, automatic dusk activation and remote monitoring by facilities staff.
• Municipal community sports complexes: Public-access tennis, basketball and futsal courts with booking-system integration; lights activate per reservation and dim or shut down when unbooked, lowering operating costs.
• Professional football and rugby stadiums: EN 12193 Class I-compliant pitch illumination with broadcast-grade Ra ≥90, flicker <1% for slow-motion cameras, and event-mode scheduling for match days.
• Tennis academies and racquet clubs: Per-court control with multi-level dimming for training vs. competition modes, low-glare optics for player comfort during long matches.
• Hotel and resort recreational facilities: Aesthetic and functional lighting for outdoor tennis, padel, basketball courts and golf practice areas, scene control integrated with property-management systems.
• Equestrian arenas and horse-riding centres: Glare-controlled, broad-spread illumination tuned for the safety of horse and rider, with motion-triggered after-hours security mode and energy logging for stable operators.

Case-style Examples

• Community Sports Park Retrofit: A municipal sports park with four floodlit courts replaced 1000 W metal-halide floods on 12 m masts with eight 800 W RC-SFL fixtures per court. Energy consumption dropped 55%, average horizontal illuminance increased from 280 lx to 500 lx, and CMS booking integration eliminated 100% of the "lights left on overnight" issue, with the operator reporting payback under three years.
• University Football Pitch (Class II): A university upgraded its main football pitch (105 × 68 m) using thirty-two RC-SFL-1500 fixtures across four 18 m masts. The configuration achieved 750 lx average horizontal illuminance with UGR optimised below recommended thresholds, supporting both training and inter-university competition broadcast.
• Coastal Resort Tennis Centre: A seaside resort installed sixteen 400 W RC-SFL fixtures (C5-M anti-corrosion variant, stainless hardware) over four hard courts. Zigbee mesh control allowed retrofit without trenching, and per-court scheduling tied to the resort's booking app reduced lighting energy use by approximately 60% versus the previous always-on lighting setup.

Customization & Selection Guide

• Choose by class of play: For training and recreation (EN 12193 Class III), aim for 200–500 lx using 300–600 W fixtures. For competition (Class II), target 500 lx with 800–1500 W fixtures. For HDTV broadcast (Class I), target 1000–2000 lx with 1500–2000 W fixtures, Ra ≥90 and flicker-free drivers.
• Choose by mast height: 6–10 m masts suit small courts (basketball, tennis, padel); 12–18 m suits football and rugby; 18–35 m high masts suit athletics tracks and multi-pitch complexes.
• Choose by control: For greenfield stadiums, choose wired DALI-2. For retrofits without trenching budget, choose Zigbee mesh. For distributed multi-site venues, choose 4G + cloud CMS. For minimal automation, choose NEMA 7-pin photocell.
• Choose by climate: Coastal and island venues should select the C5-M anti-corrosion package and stainless hardware. High-altitude or extreme-cold sites should select the -40 °C low-temperature driver variant.

Deployment & After-sales

REDCOAST.LTD provides pre-sales lighting design (DIALux / Relux) tailored to each pitch geometry, sample fixture testing, remote or on-site commissioning support, and CMS platform training for venue operators. Standard lead time is 25–35 days for project configurations; stock SKUs ship faster. After-sales support includes a 5-year standard warranty, remote diagnostics via the CMS platform, and field-replaceable driver and LED module kits to minimise downtime. Spare parts are stocked for fast worldwide dispatch.

Standards & Compliance

• EN 12193: Light and lighting — Sports lighting (Class I / II / III)
• IEC 60598-1 / IEC 60598-2-5: Luminaire general and floodlight requirements
• IEC 61347 series: Lamp control gear safety
• IP66 (IEC 60529), IK10 (IEC 62262)
• EMC: EN 55015, EN 61547
• CE, RoHS, optionally ENEC, FIFA Quality / Quality Pro, World Rugby, ITF Court Pace / Lighting verification

Why REDCOAST.LTD

REDCOAST.LTD is not a reseller of generic floodlights. Every RC-SFL fixture's constant-current driver PCB and CMS control board is designed, prototyped and produced in-house, which means power ratings, dimming curves, surge protection, communication protocol stacks, NEMA / Zhaga socket pin-outs, and even the mechanical housing can be tailored project by project — whether you need a non-standard 1200 W output to match an existing mast layout, a regional protocol integration (NTCIP, LoRaWAN, or a private cloud), or a marine corrosion package for a coastal stadium. REDCOAST delivers the full hardware-firmware-cloud stack, simplifying procurement and guaranteeing long-term compatibility across sites and refurbishment cycles.

Contact REDCOAST.LTD for a lighting design, sample evaluation, and a customised quotation for your stadium, pitch, training centre or club.
