Multifunctional Smart Pole Platform with Edge Gateway Controller

Overview

The Redcoast RC-POLE-PRO is a multifunctional smart pole platform built for smart cities, industrial parks, campuses, highways and waterfront promenades that need far more than a light source on a post. A single pole consolidates intelligent LED lighting, video surveillance, 5G/4G small-cell mounting space, an environmental sensing array, public WiFi, EV charging and digital signage into one structurally engineered, IP-rated asset. The core value is consolidation: instead of erecting separate poles, cabinets and ducts for each service, operators deploy one modular pole governed by a single pole-top controller, cutting civil works, street clutter, power draw and operating cost while creating a future-proof slot for new modules. Every RC-POLE-PRO is engineered around Redcoast's own hardware design capability — we open new PCBs and do board-level design per project rather than reselling generic boxes.

Key Features

• Self-developed pole-top edge gateway controller — Redcoast-designed PCB that aggregates lighting control, sensor data acquisition, camera streams and metering into one weatherproof brain, with local edge logic that keeps running if the network drops.
• Modular function decks — bolt-on brackets and compartments for cameras, small-cell radios, sensors, signage and EV chargers; capacity is configured per project so customers pay only for the services they need.
• Single-pole LED lighting with adaptive dimming — daylight harvesting, schedule-based and motion-triggered dimming deliver up to ~70% lighting energy reduction versus always-on luminaires.
• Integrated environmental sensing — air quality (PM2.5, PM10, CO, CO2, NO2, O3), temperature, humidity, noise, illuminance and wind, feeding real-time city dashboards.
• Built-in video surveillance ports — PoE camera mounting and power for security, traffic and crowd monitoring with edge pre-processing.
• Carrier-neutral 5G/4G small-cell mounting — reserved cavity, power and backhaul space so operators can host small cells without new structures.
• Multi-source power — grid, solar, or wind-solar hybrid, with optional battery backup for off-grid or unreliable-grid locations.
• Software-defined operation — Redcoast's self-developed web and mobile platform unifies monitoring, control, fault alarms, energy reporting and OTA firmware updates.
• Hardened structure — Q235/S235 hot-dip galvanized steel rated for high wind and harsh climates.
• Per-project customization — height, deck layout, finish, sensor mix and connectivity are all configurable.

Technical Architecture

The RC-POLE-PRO is organized in three layers. The structural layer is a tapered Q235/S235 steel pole (octagonal, conical or cylindrical) with a hand-hole cabinet at the base and pre-engineered mounting decks at defined heights. The device layer holds the field equipment: LED luminaires, PoE cameras, the environmental sensor cluster, signage panel, small-cell space, public WiFi access point and optional EV charger. The control layer is Redcoast's self-developed pole-top edge gateway controller — a board-level design that handles single-pole lighting drivers, RS-485/Modbus and digital sensor buses, PoE camera power, energy metering and protective switching, then exposes everything over a single managed uplink.

The controller runs edge logic locally: lighting dimming curves, motion response, fault detection and sensor thresholding execute on the pole even when connectivity is lost, and buffered data syncs when the link returns. Aggregated telemetry flows to Redcoast's cloud platform, where operators see live status, control luminaires individually or in groups, receive alarms, pull energy and environmental reports and push OTA updates. This edge/cloud split keeps bandwidth low, latency predictable and the system resilient — critical for large deployments spanning hundreds of poles.

Connectivity & Power

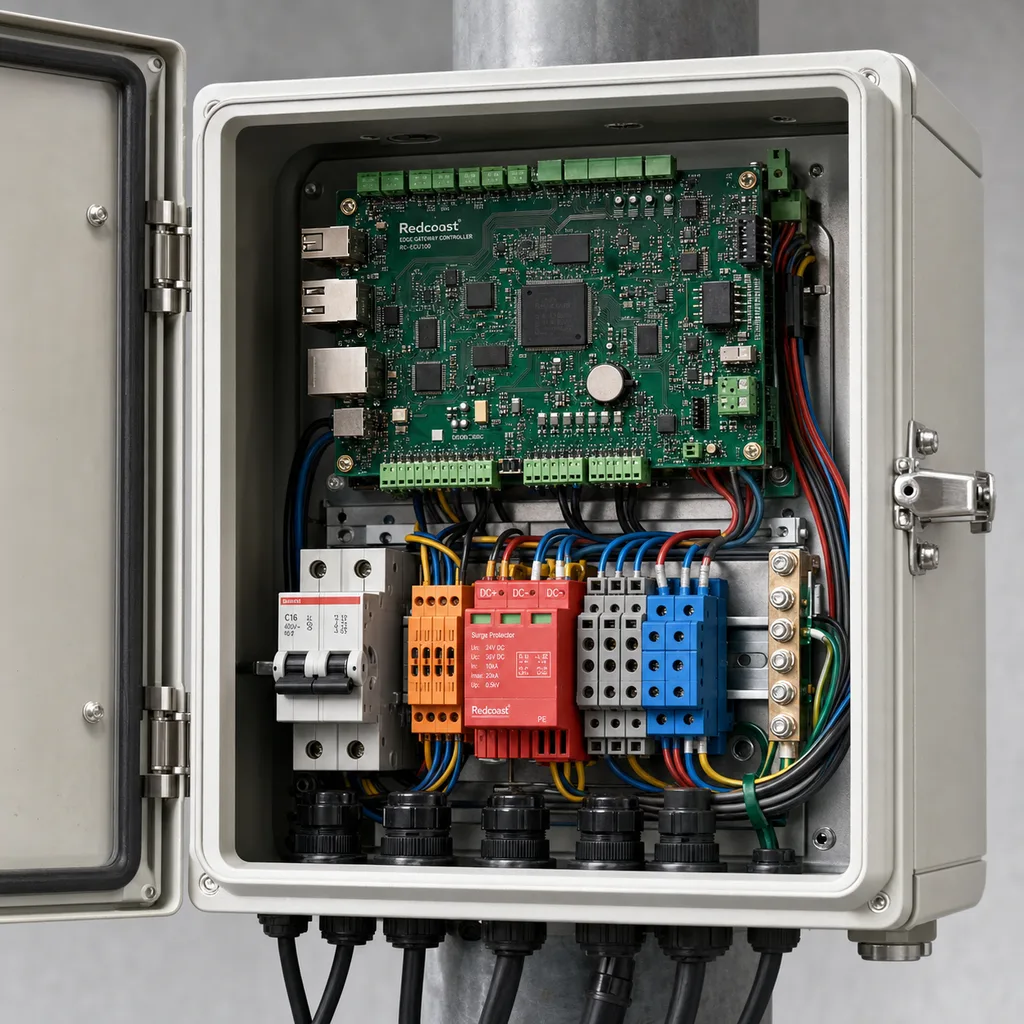

For backhaul, the controller supports 4G/5G cellular for standalone or scattered poles, fiber/Ethernet uplink where ducting exists for dense urban corridors, and NB-IoT or LoRa for low-bandwidth telemetry across wide rural or campus areas. Mesh-style chaining between adjacent poles is available so a cluster shares a single gateway uplink. On power, RC-POLE-PRO accepts mains grid for standard city streets, solar with LiFePO4 battery storage for off-grid roads and parks, and wind-solar hybrid for high-wind coastal or remote sites with weak grids. Surge protection and per-circuit breakers are built into the base cabinet to protect the electronics across diverse grid-quality environments worldwide.

Protection & Reliability

Electronics enclosures are rated IP66, with IP67 available for flood-prone or wash-down areas; the controller operates from -40 °C to +70 °C, suiting deserts, cold-climate cities and tropical coasts alike. The steel structure is hot-dip galvanized to ASTM A123 (≥85 µm), with optional powder-coat or marine-grade anti-corrosion finish for salt-spray coastal and industrial settings. Poles are engineered to withstand wind speeds of 180–216 km/h depending on height and configuration. Sand, dust and UV resistance, plus redundant edge logic, target multi-year unattended operation with a reliability- and warranty-oriented design.

Application Scenarios

• Smart city main roads and avenues — one pole delivers lighting, traffic and security cameras, air-quality sensing and 5G small-cell space, decluttering streetscapes while feeding city dashboards.
• Industrial parks and logistics zones — perimeter lighting, surveillance, environmental compliance monitoring and WiFi for staff and vehicles on one managed network.
• Campuses and tourist/waterfront promenades — ambient lighting, public WiFi, emergency call points, signage and crowd-density sensing for safety and visitor experience.
• Highways and intercity corridors — solar or hybrid-powered poles with cameras and weather sensors at sites with no reliable grid, monitored remotely from a central platform.
• Residential communities and transit hubs — lighting plus EV charging and surveillance, consolidating amenities buyers increasingly expect.
• Border, port and remote infrastructure sites — off-grid hardened poles combining lighting, cameras and telemetry where civil works are costly.

Case-style Examples

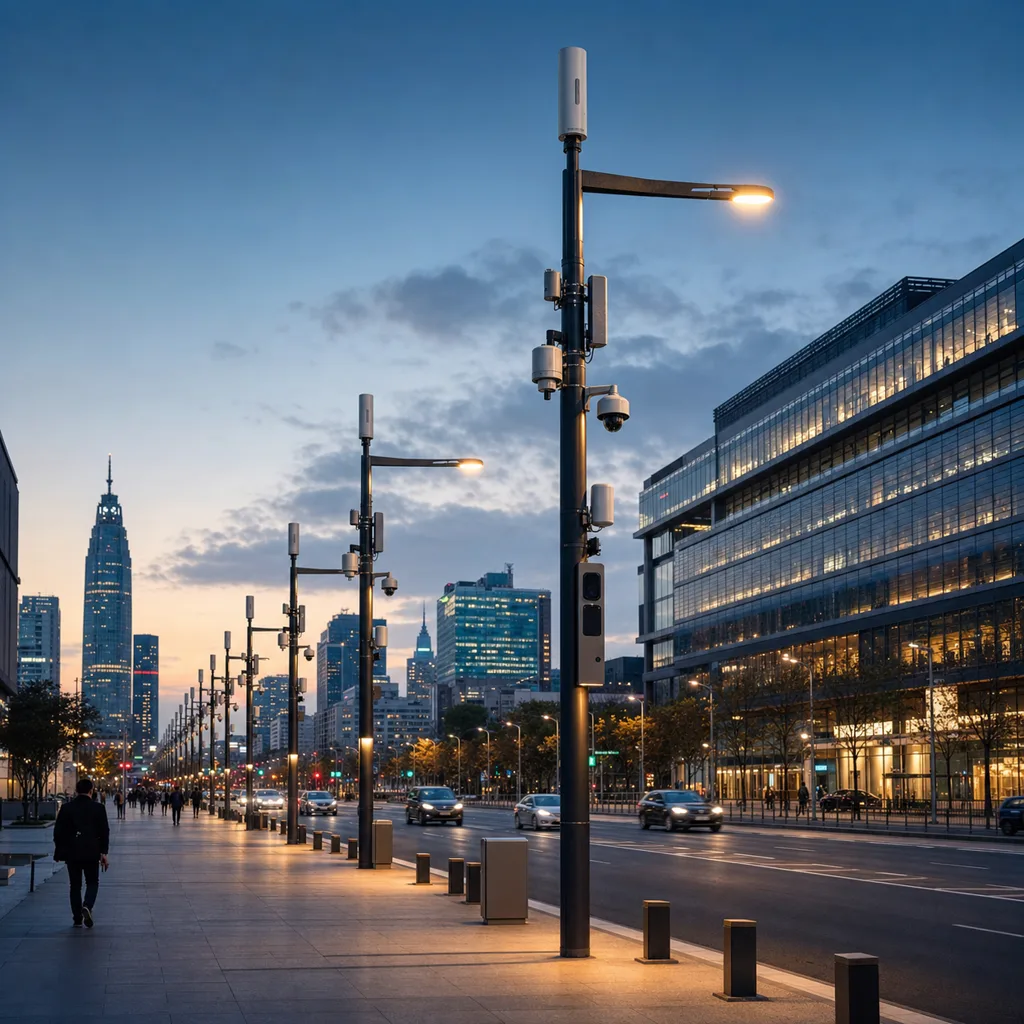

Main-avenue smart-pole upgrade: A municipal corridor replaced aging light poles with RC-POLE-PRO units carrying LED luminaires, dual PoE cameras, an air-quality sensor deck and reserved small-cell space. Grid-powered with adaptive dimming, the corridor cut lighting energy substantially while the city gained live traffic, security and environmental data from a single platform.

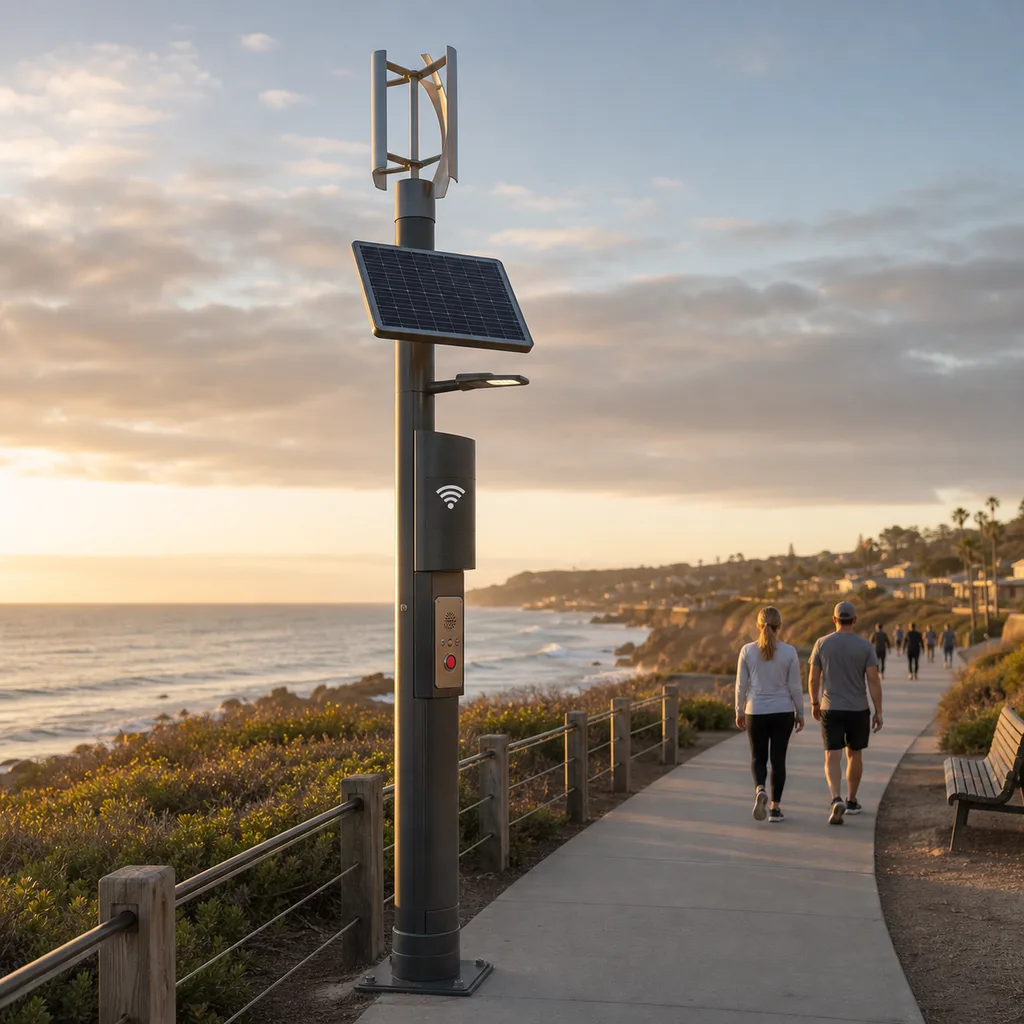

Off-grid park and promenade deployment: A waterfront park with no nearby grid used solar wind-hybrid RC-POLE-PRO poles with LiFePO4 storage, providing all-night lighting, public WiFi, emergency call buttons and crowd-density sensing. Remote monitoring let the operator manage the whole stretch without on-site staff.

Industrial-park perimeter network: A logistics park deployed poles combining surveillance cameras, environmental compliance sensors and lighting along its perimeter and yards, all backhauled over a fiber-and-cellular mix and unified in the Redcoast platform for one-pane security and operations management.

Customization & Selection Guide

Start with height: 4–6 m for pedestrian/park areas, 8–10 m for urban roads, 10–12 m for highways and large junctions. Choose power by grid availability — mains for serviced streets, solar+battery for off-grid, wind-solar hybrid for high-wind weak-grid sites. Pick connectivity by data load — fiber/5G for camera-heavy urban poles, NB-IoT/LoRa for sensor-only telemetry, cellular for standalone poles. Select function decks to match the use case: lighting-only baseline, add cameras for security, sensor decks for environmental compliance, small-cell space for carrier hosting, EV charging and signage for high-traffic public sites. For coastal or industrial corrosion, specify marine-grade finishes. Redcoast tailors the controller PCB and deck layout to the exact module mix so nothing is over- or under-specified.

Deployment & After-sales

Poles ship as the steel structure plus pre-wired base cabinet and pre-configured edge controller, with function modules mounted on site to defined decks; foundation drawings and anchor-bolt templates are provided. Lead time is project-scaled and confirmed at order. Redcoast supports installation guidance, platform commissioning and operator training, and provides remote diagnostics, OTA firmware updates, spare-parts supply and a warranty-backed support program. Because the hardware is our own design, field issues are resolved at board level rather than waiting on third-party vendors.

Standards & Compliance

RC-POLE-PRO is engineered toward CE and RoHS, IP66/IP67 ingress protection (IEC 60529), hot-dip galvanizing to ASTM A123 / ISO 1461, LED luminaire and EMC directives, and surge protection per IEC 61643. Camera, small-cell and EV-charging modules are selected to meet the relevant regional standards of the deployment country.

Why Redcoast

Redcoast is a custom smart-IoT hardware-and-software solution provider that designs its own PCBs and board-level hardware per project — not a reseller of generic kit. We pair that with our self-developed web and mobile management platform, so the pole, its edge controller and its software are engineered as one coherent system and tuned to each deployment's climate, grid, connectivity and service mix.

Contact Redcoast to discuss your site requirements and receive a tailored multifunctional smart pole configuration and quotation.
