Traffic safety systems have to be clear for road users and measurable for operators. REDCOAST.LTD connects field devices, control logic and monitoring so safety assets can be maintained as infrastructure.
Traffic safety decision matrix
| Decision factor | Recommended approach | Buyer risk to avoid |
|---|---|---|
| Safety function | Define whether the device warns, guides, slows, marks or triggers a response before choosing hardware. | A bright sign without a defined safety function can pass installation but fail to change road behavior. |
| Power model | Choose grid, solar or hybrid power by load, visibility schedule, autonomy requirement and service access. | Undersized solar or unmonitored batteries can make safety assets disappear exactly when they are needed. |
| Remote supervision | Monitor online status, power, control mode and event history for critical warning devices. | Manual inspection alone leaves long blind periods after device failure. |
From device list to safety function
Every sign, beacon or sensor should map to a clear safety purpose such as speed reduction, pedestrian visibility or lane guidance.
- Warning signs, beacons, lane markers, radar triggers and cabinets selected by road scenario.
- Control logic designed for timing, brightness, manual override and emergency modes.
- Remote monitoring for device status, power, connectivity and abnormal operation.
Visibility and reliability
Traffic safety equipment must remain readable and serviceable under outdoor conditions.
- Brightness, optical angle and mounting position planned for actual driver sight lines.
- Ingress protection, surge protection and thermal design matched to the environment.
- Maintenance workflow that records faults, replacements and on-site evidence.
Data and integration
Safety devices can contribute useful operational data when the platform is designed for events, alarms and status history.
- Event records for triggers, device status, offline events and manual actions.
- API or dashboard integration for road operation centers and maintenance contractors.
- Reports that separate equipment faults from operating conditions.
Checklist
Planning checkpoints
Start from the road risk and safety function, then choose devices.
Test visibility at real approach distances and lighting conditions.
Define fail-safe behavior for communication loss or power instability.
Require service logs and status history for maintenance accountability.
Standards
Standards and interface notes
- Road authority rules, local traffic codes and sign placement requirements take priority over generic device datasheets.
- Define LED brightness, viewing angle, flash pattern and mounting height for actual approach distance.
- Ingress protection, surge protection and cabinet safety should match the outdoor traffic environment.
- Fail-safe behavior for power loss, network loss and manual override must be documented.
Procurement
Commercial questions to settle
- Which road risk is being reduced: speeding, pedestrian visibility, lane confusion or work-zone warning?
- Who approves sign content, flash pattern and installation position?
- Is solar acceptable for the duty cycle and local weather?
- Which failures require urgent maintenance response?
Acceptance
Evidence buyers should request
| Acceptance test | Pass criteria | Evidence |
|---|---|---|
| Visibility validation | Drivers or pedestrians can read and understand the device at the agreed approach distance and lighting condition. | Site photos, video and night/day inspection notes. |
| Trigger and control behavior | Radar, sensor, timer or manual control activates the expected warning mode consistently. | Event logs and functional test record. |
| Failure notification | Offline, low power or cabinet abnormal events create platform alarms within the agreed threshold. | Alarm export and recovery log. |
Related Products
Product capabilities for this page
Solar-Powered Smart Pedestrian Crossing & Active Crosswalk Warning System
Off-grid solar crosswalk safety system with FHWA/MUTCD-style RRFB beacons, in-road LED studs, radar/PIR pedestrian detection and IoT remote monitoring — Redcoast custom PCB and software-hardware integration.

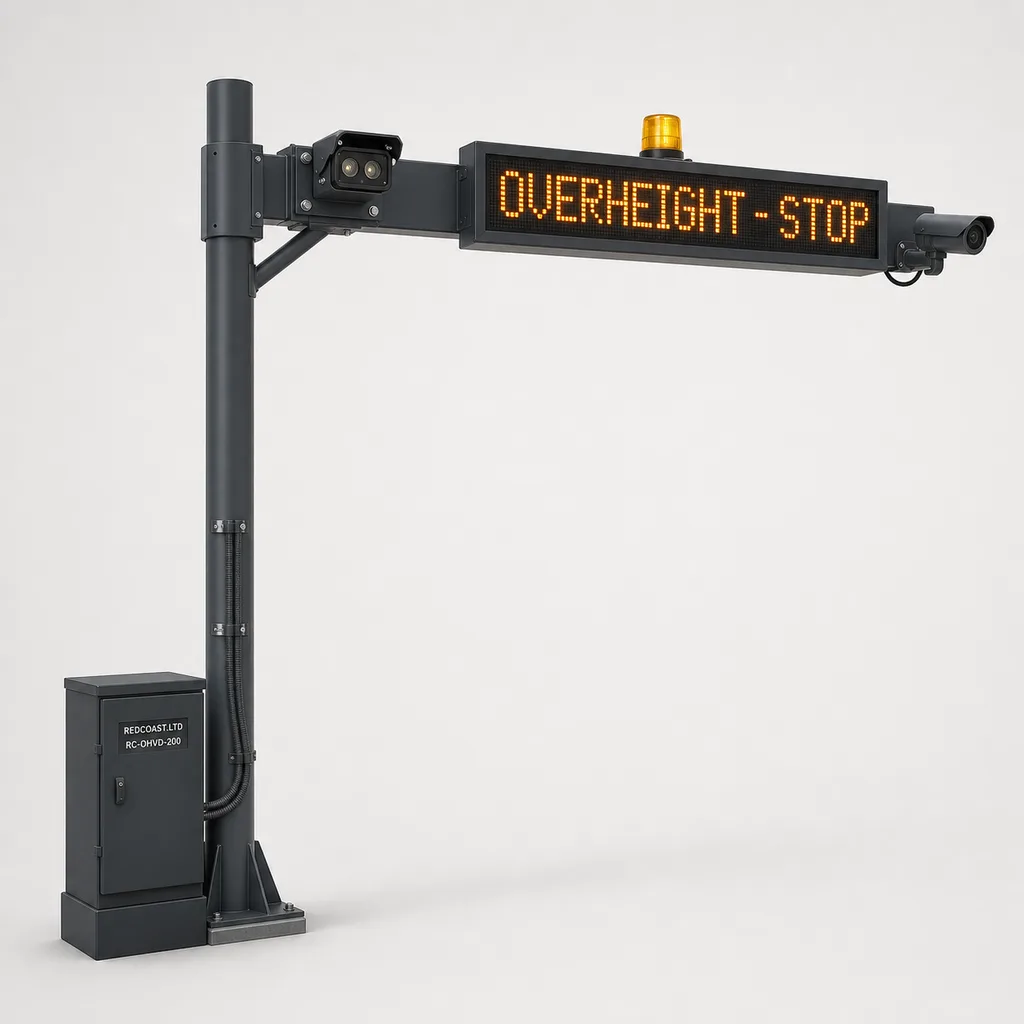

Grid-Powered Over-Height Vehicle Detection and Warning System for Low Bridges and Tunnels (OHVDS)
Mains-powered roadside system that detects over-height trucks with a dual laser/IR curtain, commands an LED warning sign and beacon, ANPR-captures the violator, and pushes the event to traffic management centers over NTCIP — fully engineered by REDCOAST.LTD.
Grid-Powered Smart School Zone Active Safety Management System
Zone-coordinated school zone safety platform: 24 GHz radar speed detection, full-matrix LED speed feedback displays, RRFB-class amber flashing beacons, and electronic variable speed limit signs — all schedule-aware, grid-powered, MUTCD/EN 12899 compatible.

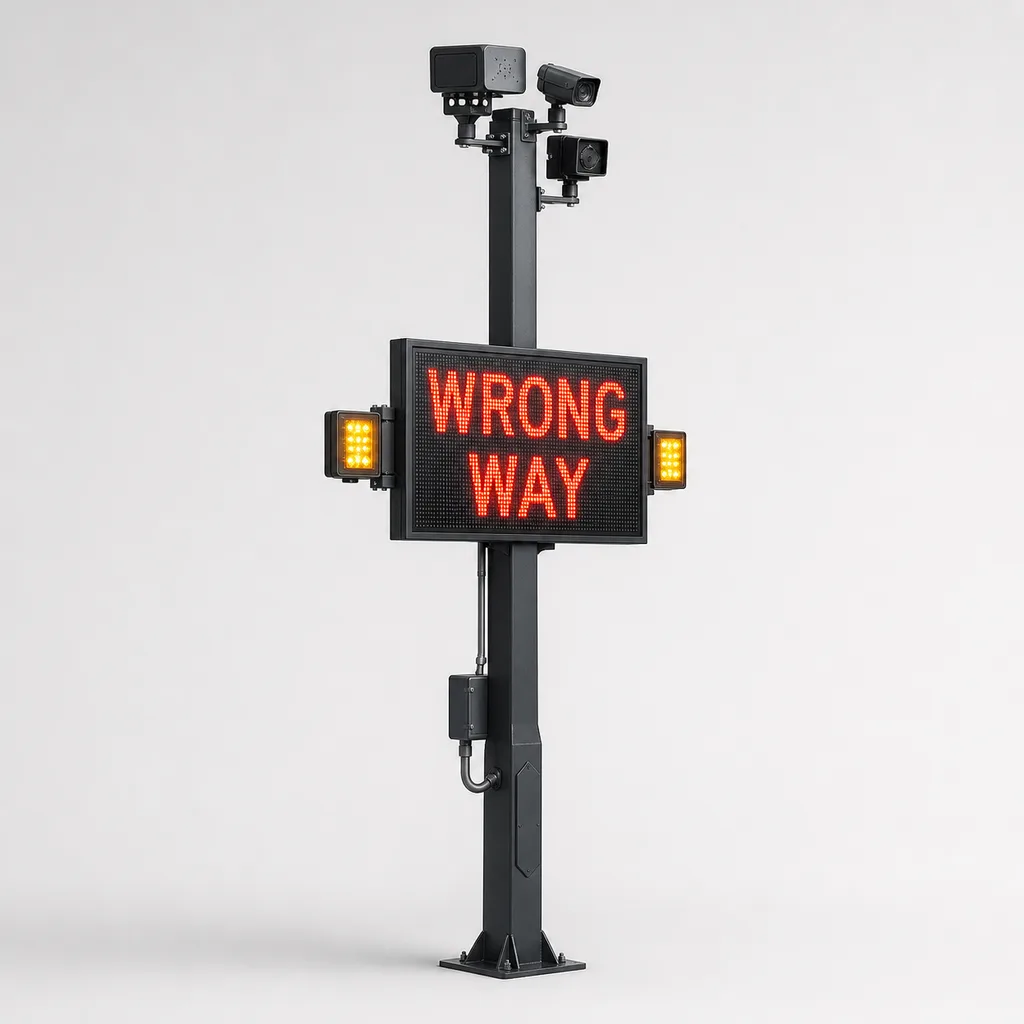

Grid-Powered Wrong-Way Driver (WWD) Detection and Active Warning System
Mains-powered ITS solution that detects wrong-way vehicles on highway off-ramps and one-way access roads within seconds, fires active LED warnings and alerts the TMC.

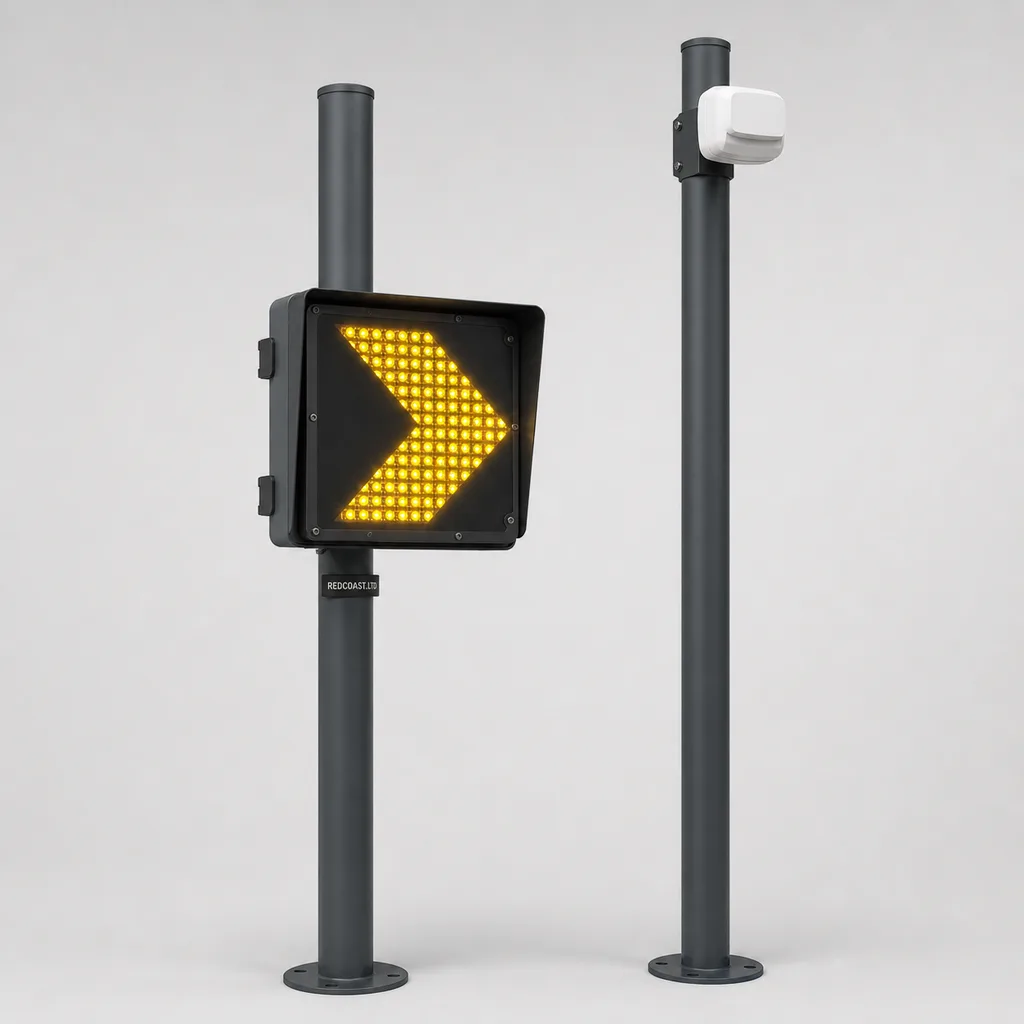

Sequential Dynamic Curve Warning System with Radar Trigger and Networked LED Chevrons
Grid-powered, radar-activated sequential dynamic chevron warning system from REDCOAST.LTD for horizontal-curve crash black spots on arterials, interchange ramps, mountain descents and tunnel approaches; MUTCD/EN compliant with up to 16 networked chevrons.
Railway Level Crossing Warning System (LCWS) with LED Flashing Signals, Half-Barrier Gates & Obstacle Detection
Grid-powered active level crossing warning system: SIL-rated wheel-sensor train detection, 300 mm LED flashing signals, electronic bells, half-barrier gates, optional 77 GHz radar obstacle detection, battery-backed power and cloud remote monitoring.
Next
Related guidance
Solar Off-Grid IoT
Design solar-powered outdoor IoT systems with panels, batteries, controllers, low-power devices, gateways and remote power monitoring.
Parking Guidance
Design outdoor and indoor parking guidance with occupancy detection, entrance displays, bay indicators, operator dashboards and integration-ready APIs.
Municipalities
Municipal smart city programs for lighting, traffic safety, parking, smart poles and environmental monitoring with one hardware and software partner.
Frequently asked questions
Can traffic safety devices be monitored remotely?
Yes. Devices with communication modules can report status, power, alarms and event history to a platform, depending on the selected hardware.
What matters most for LED warning signs?
Brightness, viewing angle, environmental protection, mounting position, content control and maintenance access are usually more important than display size alone.
Can traffic safety systems be solar powered?
Many warning and guidance devices can use solar power when the load, autonomy requirement, local sunlight and maintenance plan are engineered together.
Should traffic safety devices always be connected?
Critical or hard-to-inspect devices should be connected so operators can see online status, power condition and event history instead of relying only on field patrols.
What makes a traffic safety pilot useful?
A useful pilot tests visibility, activation logic, power stability, alarm workflow and maintenance response under real road conditions.
